High CRI 95 20W 1313 COB LED Chip with 120° Viewing Angle for Commercial Lighting

Name: High CRI 95 20W 1313 COB LED Chip with 120 Viewing Angle for Commercial Lighting
Brand: HuanYu Dream
Price: 1 USD

Buy cheap High CRI 95 20W 1313 COB LED Chip with 120° Viewing Angle for Commercial Lighting product

Lifespan : 50000 hours

Wide viewing angle : 120°

CCT : 4000K-6000K

Series : 12C3P

Brand Name : HuanYu Dream

Model Number : JC-1311W60-12C4B-20-J3

Certification : RoHS

Place of Origin : China

MOQ : 1piece

Price : Negotiated

Payment Terms : T/T,Paypal,Ali Pay

Supply Ability : 30000 units per day

Delivery Time : 10-15 Work Days

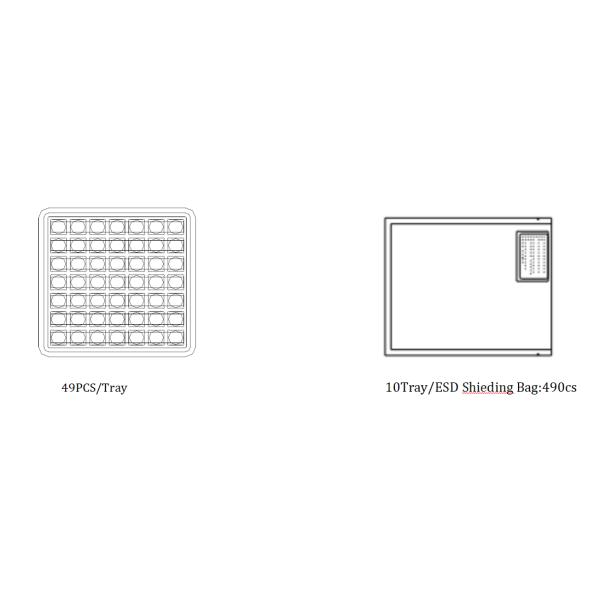

Packaging Details : 49pcs/Tray

Product Name : 1313 COB led chips

Emitting Color : White

Warranty : 3 Years

Working Time : 50000 hours

CRI : 80

Power : 20 W

Contact Now

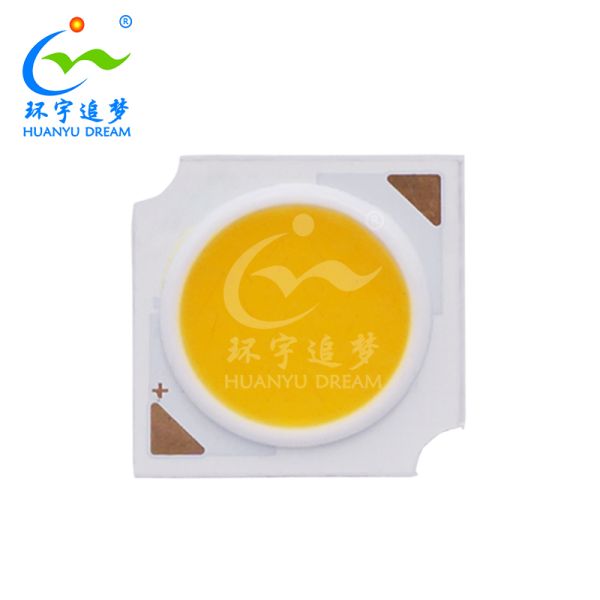

High CRI 1313 13.5mm COB LED Chip - 20W 4000K-6000K

Similar to CA1313-H Chip LED COB 20W 4000K-6000K 600mA 34V-38V for daylight commercial lighting. Customization available.

Product Features

Dimensions: 13.50mm × 13.50mm × 1.5mm
High Color Rendering Index: CRI 95
Wide 120° viewing angle
RoHS compliant for environmental safety
Sulphation corrosion resistance
Manual soldering compatible
Fabricated using blue chip and phosphor technology

High CRI 95 20W 1313 COB LED Chip with 120° Viewing Angle for Commercial Lighting

Technical Specifications

Electrical-Optical Characteristics (Ta=25℃)

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Forward Voltage	VF	IF=600mA	34	--	38	V
Luminous Flux (4000K-6000K)	φ	IF=600mA	2800	--	3300	Lm
Viewing Angle	2θ1/2	IF=600mA	--	120	--	Deg
Color Rendering Index	CRI	IF=600mA	95	--	98	--
Thermal Resistance	Rth(j-s)	IF=600mA	--	--	0.67	℃/W

Absolute Maximum Ratings (Ta=25℃)

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	25	W
Forward Current	IF	600	mA
Peak Forward Current	IFP	660	mA
Junction Temperature	Tj	115	℃
Solder Temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ +85	℃
Storage Temperature	Tstg	-40 ~ +100	℃

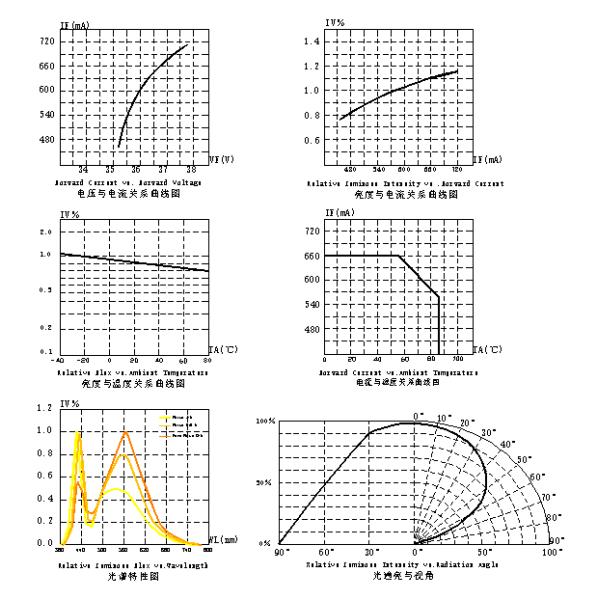

Optical Characteristic Curve

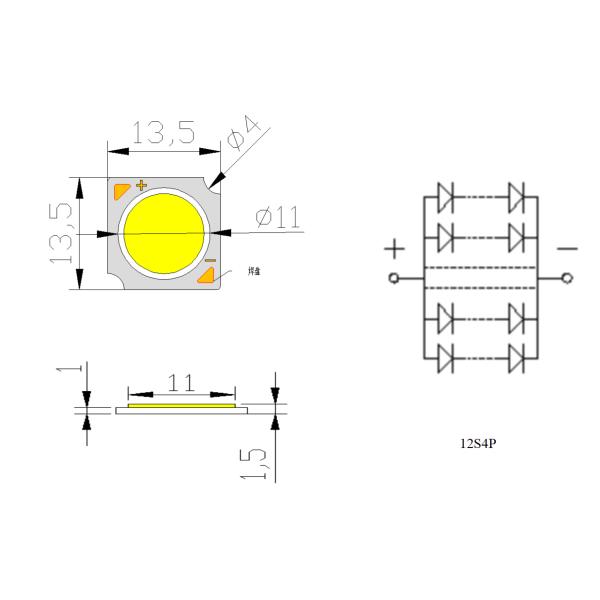

Package Dimensions

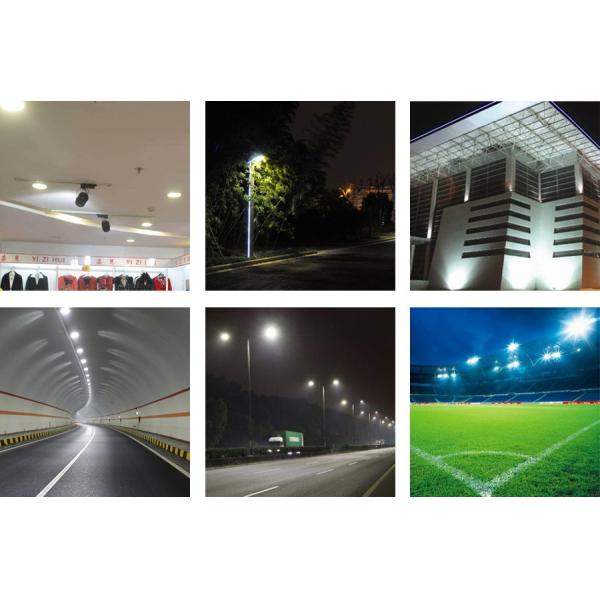

Applications

Widely used in mobile phone flash, automotive signal lighting, automotive interior/exterior lighting, automotive forward lighting, torches, architectural lighting, LCD TV/monitor backlight, projector light sources, traffic signals, task lighting, decorative/pathway lighting, remote/solar powered lighting, household appliances, and more.

Product Tags:

1313 Chip LED COB

Chip LED COB 20W
